Solution for rapid temperature measurement to prevent Covid-19

 Ⅰ、Application background

    Challenge from coronavirus，"Early detection, early treatment" is the most critical task at this stage. Business offices、government offices、private apartments etc. are the important places for people to work and live，many people have uncertainty -how do we measure temperature quickly and correctly in this kind of scenes and make sure to detect the suspected case。

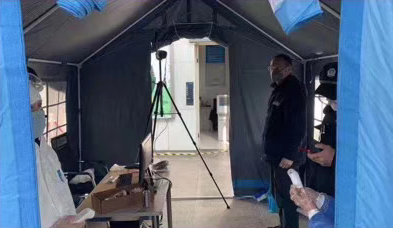

It is suggested to set up a temporary measurement room or a temporary tent, the purpose is to create an indoor windless environment to make sure the effectiveness and efficiency.

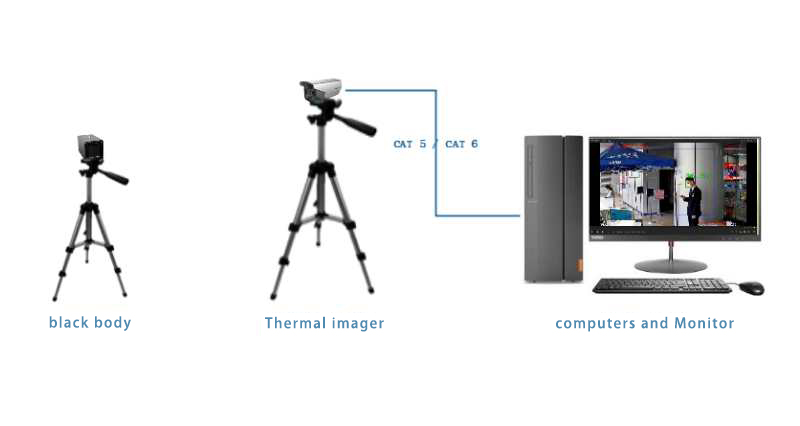

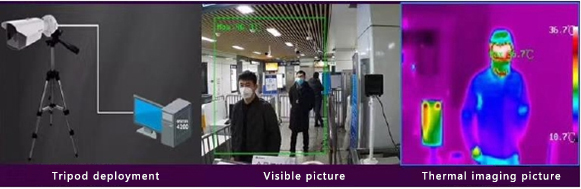

Use tripod to install double light tube machine for measuring body temperature; When the abnormal temperature is detected, it can trigger the sound and light alarm of the camera, and realize the remote preliminary batch screening of human body temperature.

Set up temperature measurement channel (provided by the customer)

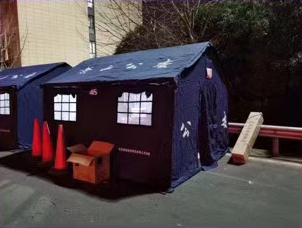

Build temporary tents to create a windless environment and direct sunlight

Double light tube machine for measuring temperature of human body

Thermal imaging: resolution 160 × 120;

The focal length 6 mm;

Field of view Angle: 25°×18.7°;

Visible light: resolution 2688*1520；

The focal length 8 mm；

Video mode: dual light fusion；

Human body temperature measurement black body

The temperature resolution is 0.1℃

Temperature measurement accuracy ±0.2℃(single point)

Temperature stability ±(0.1~0.2)℃/h

Effective emissivity 0.97±0.02

Ambient temperature 0~40℃

ripod fixing bracket

UNC 1/4”-10 Tripod interface

Monitor display

22” Liquid crystal display

Computer management

All metal body，Compact design

HDMI、DP Double 4KHD hetero output，

Double gigabit network port

IVMS - 4200 software

Ⅲ、Main equipment list of the scheme

Remark:

1. Customers can choose according to their actual needs;

2. If the supporting intelligent NVR or networking project is needed, quotation shall be made according to the actual situation;

3. The warranty period of the main equipment is 1 year;

4. The proposal is valid for 30 days.

 Ⅳ、Successful application cases

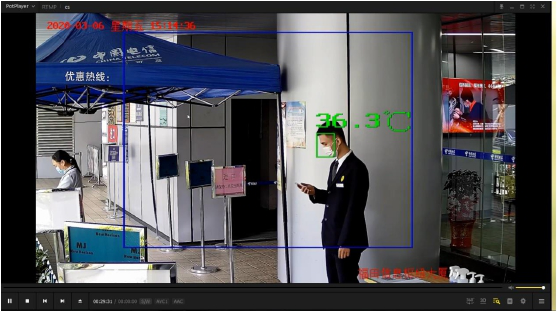

5G remote supervision on a high-rise office building in Shenzhen。
